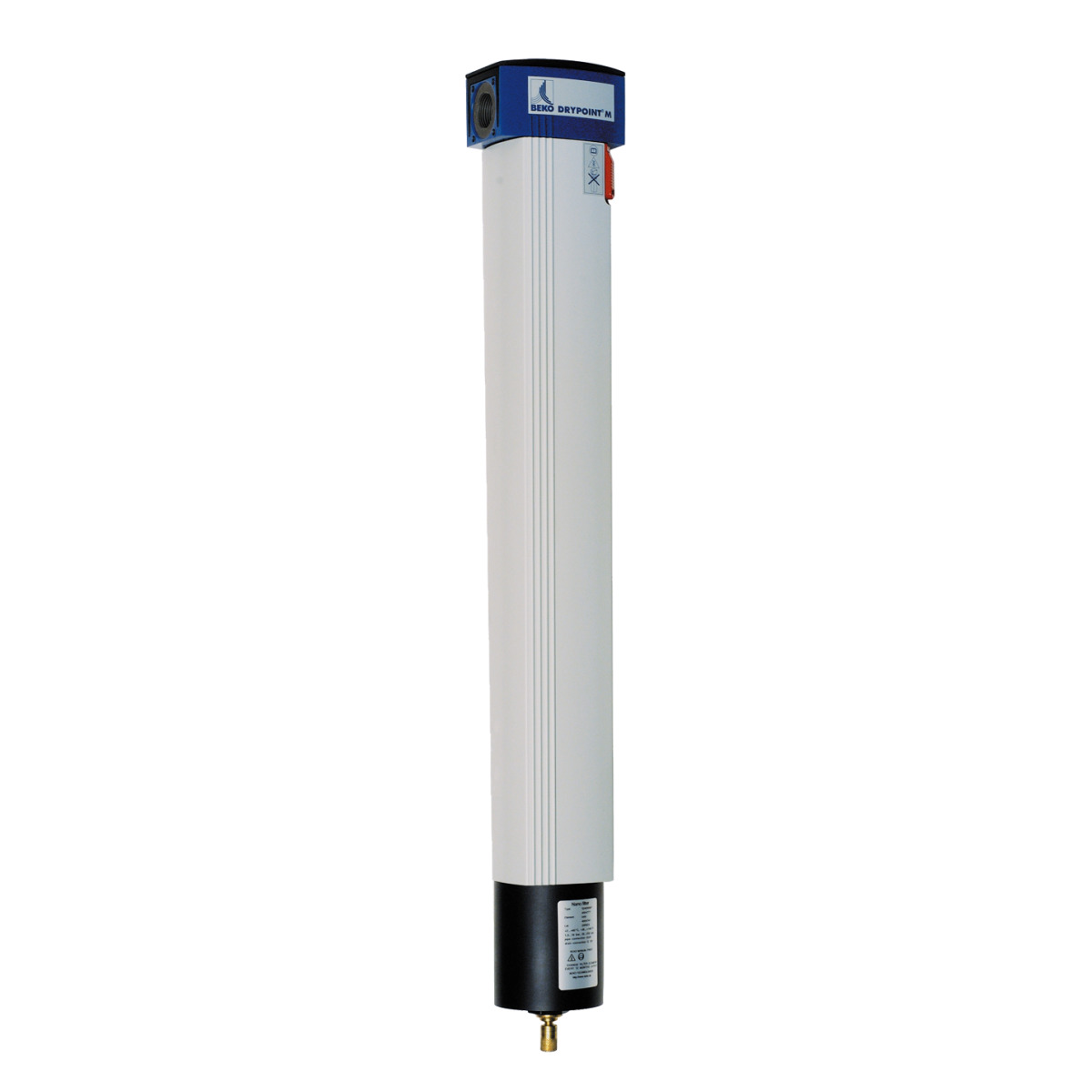

Aircraft DRYPOINT M PLUS 20-48A membrane dryer

con integrated filtro. Equipo Aircraft DRYPOINT M PLUS 20-48A para operación industrial, con ficha técnica, capacidades, equipamiento y configuración verificados contra la fuente técnica oficial para uso profesional continuo.

• The ultimate membrane dryer technology con integrated nanofilter
• Filtration y drying in one carcasa (simple filtro element change)
• Low purge aire requirement (Twist 60 technology)
• Availability of dried compressed aire immediately sin running-in fase
• Safe drying due to the high partial vapor presión gradient
• No change in the compressed aire temperature y composition
• Proven 100,000 times
• Maintenance-free (except filtro element change)
• para diverse applications, including para breathing aire treatment
• Also ideal para use directly behind the compresor / postenfriador
• Optionally also para higher loads (assembly potting, 16 barra, 70°C)
• para a reliable function of the DRYPOINT M membrane dryer must meet the following requirements:
• The incoming compressed aire must not contain any liquid condensate
• Particles larger than 1 μm must be separated before the membrane dryer
• The oil content of the compressed aire must not exceed 0.01 mg/m³.
• DRYPOINT M membrane dryers have been an alternative to existing ones para years Compressed aire drying proceso proven.
• Proven proceso of highest reliability y functional seguridad
• Immediate availability of dry compressed aire, even when working discontinuously
• Low purge aire requirement, compressed aire drying can be adjusted to the application
• Compact y robusta, small space requirement due to low overall altura
• Compressed aire inlet y outlet on one level (filtro version), sencillo to combine con filtros CLEARPOINT
• Maintenance y wear-free as there are no moving parts
• No reduction in the oxygen content, therefore also suitable para breathing aire treatment
• No eléctrico connection, also suitable para Ex areas
• mayor durabilidad operativa in case of use of filtros CLEARPOINT
• Environmentally friendly, does not require CFCs / CFC-containing refrigerants or adsorbents
• Complete solución: filtration y dryer in a compact form, integration of drain pipe
• Filtration at the point in the cadena de tratamiento where the mayor eficiencia is achieved
• sencillo maintenance / replacement of filtro element as con a regular filtro
• The CLEARPOINT filtro element type N is used to separate sólido particles down to 0.01 micron, water y oil aerosols . The element has a multi-stage structure para efficient y long-lasting filtering. In the first stage, coarse particles are retained by a prefiltro layer. In the second stage, finer particles are absorbed by a profundidad filtro bed made of high-performance borosilicate fiber fabric. Due to the very large cavity volume of the filtro medium (96%), a very high dirt holding capacity is achieved. The filtro medium is specially impregnated in order to avoid cross-sectional swelling of the individual fibers.
• The basic version includes a float drain.
• This size is para the demand-oriented compressed aire drying of medium volume flows configured. Different levels of drying of the compressed aire are achieved through different purge aire settings.
• Advantages DRYPOINT M PLUS
• filtro element: N (nanofilter)
• Trap: Float trap
• Size 10 - 40
