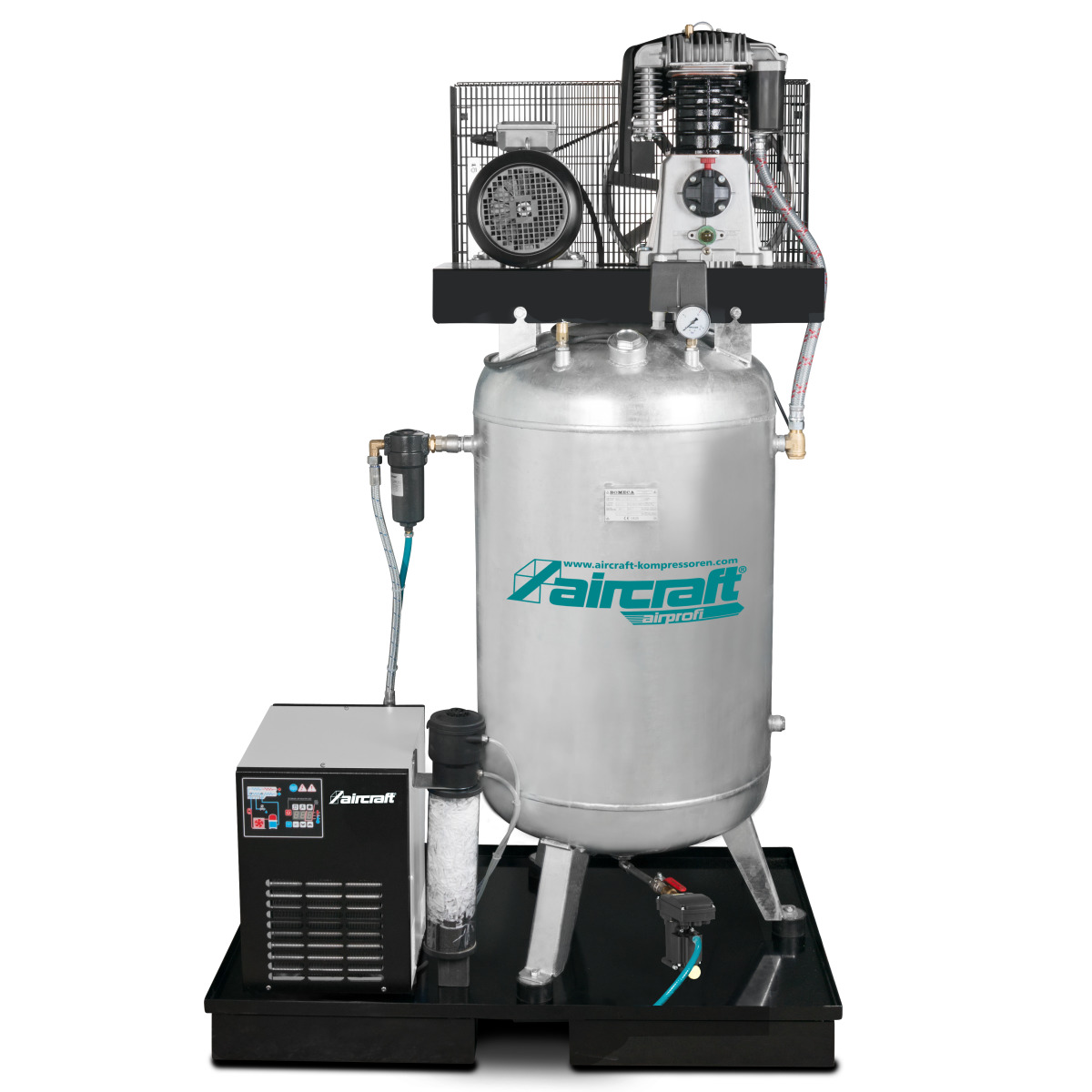

Aircraft AIRPROFI 703/270/15 VKK stationary piston compresor (15 barra)

Stationary compressors con stationary or horizontal tank, para an operating presión above 10 barra. Equipo Aircraft AIRPROFI 703/270/15 VKK para operación industrial, con ficha técnica, capacidades, equipamiento y configuración verificados contra la fuente técnica oficial para uso profesional continuo.

• The two-stage compression 2-cilindro high-performance unit enables a very low speed, lo que permite in a particularly quiet y low-vibration run
• Large fan ensures optimal cooling
• Intercooler y aftercooler ensure a low container inlet temperature y thus reduce condensation
• High quality eléctrico motor con high torque
• eléctrico motor equipped con motor protección interruptor
• Fifteen-year rust-through warranty on inside y outside hot-dip galvanized compressed aire tank
• Flexible armored hose line con heat protección prevents vibration breakage
• High-quality CONDOR presión interruptor as estándar
• From 7.5 kW as estándar con star-delta interruptor con operating hours counter
• Ready para connection con all fittings
• Refrigerated dryer con integrated automático steam trap para dry compressed aire, longer service life of compressed aire tools y avoidance of disturbances in neumático controls
• Fine filtro para separating condensate y sólido impurities con particles up to 1 μ in front of the secador frigorífico
• automático steam trap on the compressed aire tank
• No unnecessary presión loss
• Condensate conditioner para oil-water separation
• Important notes on condensate treatment can also be found in the section on compressed aire preparation.
• Fine filtro para separating condensate y sólido impurities con particles up to 1 μm
• Compressed aire quality according to ISO 8573-1
• Uso como prefiltro antes del secador frigorífico
• Refrigerated dryer con integrated automático steam trap
• presión dew point at 5 °C, ambient temperature 25 °C, atmospheric dew point at -22 °C
